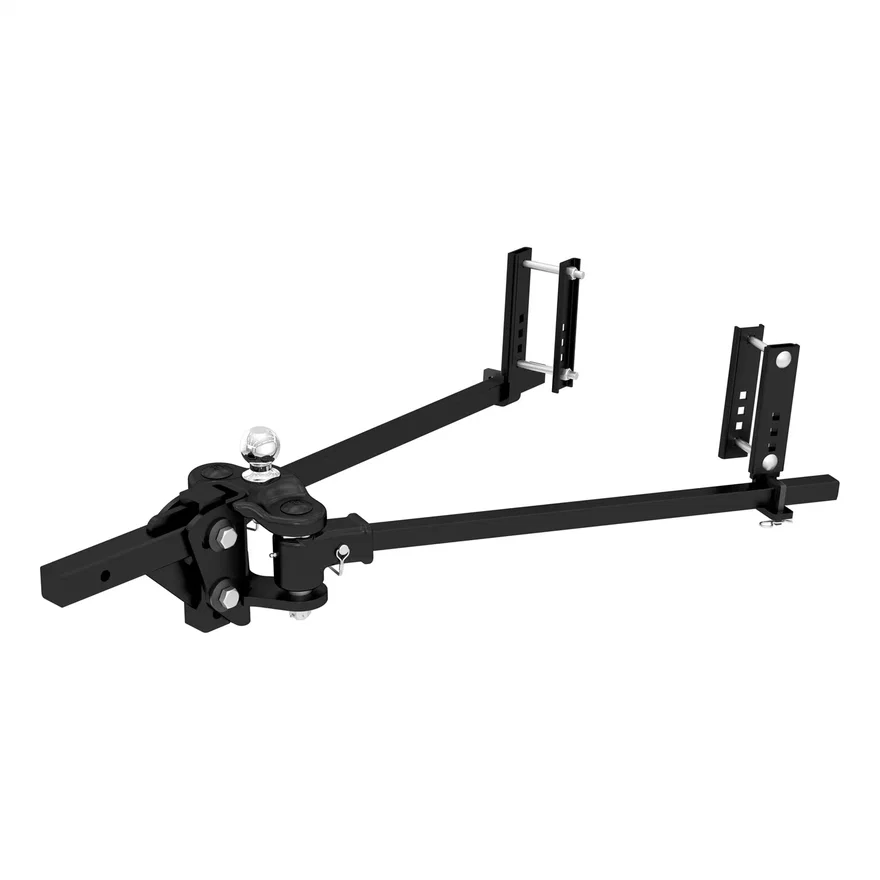

CURT TruTrack 4P Weight Distribution Hitch with 4x Sway Control; 10-15K

Part # 17501SKU CUR17501

Universal fit

Specifications
BrandCURT
Part typeTrailer Hitch
FinishCarbide Black Powder Coat
Gross Trailer Weight10000 lbs.- 15000 lbs.
Tongue Weight1500 lbs.
WC Tongue Weight1000 - 1500
UPC / GTIN00612314175017
WarrantyLimited Lifetime Warranty (One-Year Finish; One-Year Parts)
  • Sway Control Resists Sway And Levels The Vehicle And Trailer
  • Cast Head/Hardened Cams Provide Solid Attach./Resist Wear
  • Cam Springs Build Up Pressure For Integrated Sway Control
  • Fixed Support Brackets Hold The Spring Bars In Place
  • Uses Friction To Resist Lateral Movement Replacing A Sway Control
  • Equipped w/Trunnion-Style Forged Steel Spring Bars
  • 12 In. Adjustable Shank Fits 2 In. X 2 In. Receiver Tube Openings
  • Hex Castle Nut Allows For Easy Adjustment For Different Trailers
  • Brackets Use Friction To Resist Movement Replacing A Sway Control
  • Protected By A Highly Durable Carbide Powder Coat Finish
  • Incl. A Pre-Torqued 2 5/16 In. Trailer Ball
  • Backed By A 10-Year Limited Warranty

Description

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.
