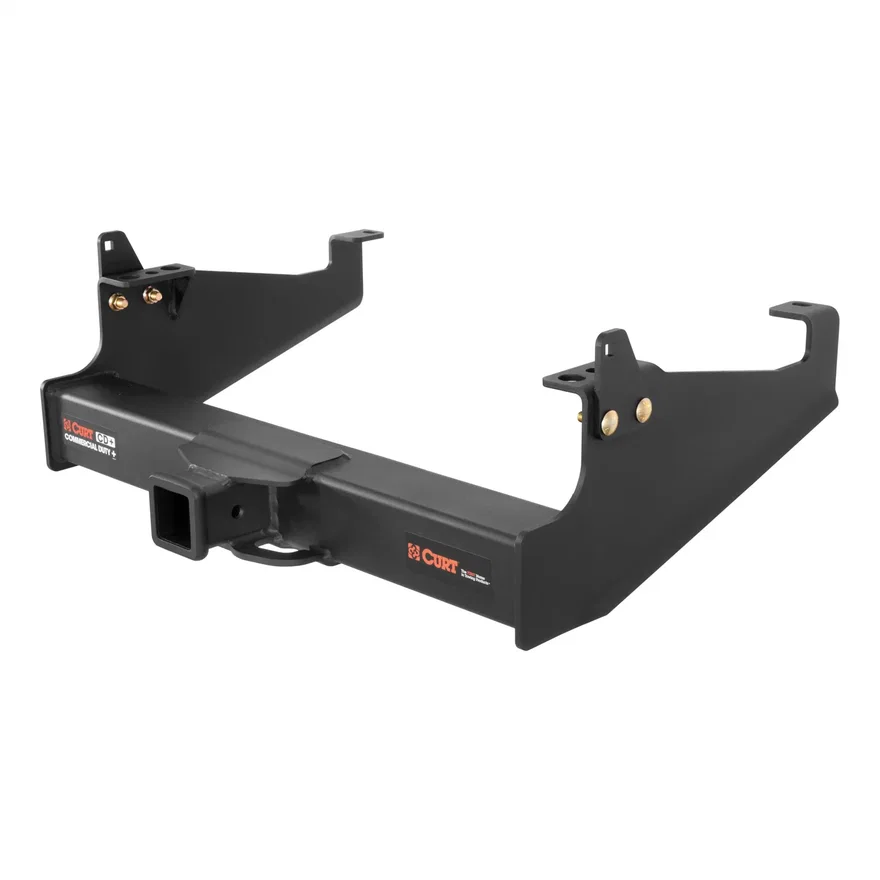

CURT Rear Commercial Duty Class 5 Hitch; 2-1/2in.; Select Ford F350; F450; F550; F650

Part # 15845SKU CUR15845

Set your vehicle above for a fit verdict. 30 vehicles listed below.

Specifications
BrandCURT
Part typeTrailer Hitch
PositionRear
Body ShapeSquare
Drilling RequiredNo
FinishCarbide Black Powder Coat
Gross Trailer Weight20000 lbs.
Install Time30 Minutes
Receiver Tube Size2.500 in.
VisibilityExposed
WC Tongue Weight2700
WD Tongue Weight2700
Weight Carrying Capacity20000
Weight Distribution20000
UPC / GTIN00612314158454
WarrantyLimited Lifetime Warranty (One-Year Finish; One-Year Parts)
  • Made w/A Vehicle-Specific Design For A Custom Fit
  • Tested For Safety In Accordance w/SAE J684
  • Precisely Welded For Superior Strength And Fit
  • Constructed w/A Large Powerful Main Body
  • Protected By A Highly Durable Carbide Powder Coat Finish
  • Co-Cured In A Rust-Resistant Liquid Bonderite Coating
  • Strengthened w/A Cast Welded Seamless Collar
  • Features Wide Safety Chain Openings For Heavy-Duty Hooks
  • Backed By A Limited Lifetime Warranty
  • Made in USA [may include imported hardware]

Description

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Ford F350 Super Duty, F450 Super Duty, F550 Super Duty and F650 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2 in. x 2-1/2 in. receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

Fits these vehicles 30

YearMakeModelSubmodelBody StyleEngine
1999 - 2002FordF-450 Super Duty--6.8L 415 V10, 7.3L 445 V8
2003FordF-450 Super Duty--6.0L 363 V8, 6.8L 415 V10, 7.3L 445 V8
2004 - 2007FordF-450 Super Duty--6.0L 363 V8, 6.8L 415 V10
2019FordF-450 Super DutyXL-6.7L 406 V8, 6.8L 415 V10
2024 - 2025FordF-450 Super Duty--6.7L 406 V8, 7.3L 445 V8
2026FordF-450 Super DutyXL-6.7L 406 V8, 7.3L 445 V8
2020 - 2023FordF-450 Super DutyXLCab & Chassis - Crew Cab6.7L 406 V8, 7.3L 445 V8
2020 - 2023FordF-450 Super DutyXLCab & Chassis - Extended Cab6.7L 406 V8, 7.3L 445 V8
1999 - 2002FordF-550 Super Duty--6.8L 415 V10, 7.3L 445 V8
2003FordF-550 Super Duty--6.0L 363 V8, 6.8L 415 V10, 7.3L 445 V8
2004 - 2007FordF-550 Super Duty--6.0L 363 V8, 6.8L 415 V10
2008 - 2010FordF-550 Super Duty--6.4L 391 V8, 6.8L 415 V10
2011 - 2016FordF-550 Super Duty--6.7L 406 V8, 6.8L 415 V10
2017 - 2018FordF-550 Super DutyXL-6.7L 406 V8, 6.8L 415 V10
2020FordF-550 Super DutyXL-7.3L 445 V8
2024 - 2026FordF-550 Super Duty--6.7L 406 V8, 7.3L 445 V8
2021 - 2023FordF-550 Super DutyXLCab & Chassis - Crew Cab6.7L 406 V8, 7.3L 445 V8
2021 - 2023FordF-550 Super DutyXLCab & Chassis - Extended Cab6.7L 406 V8, 7.3L 445 V8
2000 - 2003FordF-650--5.9L 359 I6, 7.2L 441 I6, 7.3L 444 V8
2004 - 2007FordF-650--5.9L 359 I6, 6.0L 365 V8, 7.2L 441 I6
2008FordF-650--5.9L 359 I6, 6.0L 365 V8, 6.7L 408 I6, 7.2L 441 I6
2009 - 2010FordF-650--6.7L 408 I6, 7.2L 441 I6
2011FordF-650--6.7L 408 I6
2012FordF-650--6.7L 408 I6, 6.8L 415 V10
2013FordF-650XL, XLT-6.7L 408 I6, 6.8L 415 V10
2015FordF-650--6.7L 408 I6, 6.8L 415 V10
2016 - 2019FordF-650--6.7L 406 V8, 6.8L 415 V10
2021 - 2026FordF-650--
2012FordF-750XL, XLT-6.7L 408 I6
2013FordF-750--6.7L 408 I6
