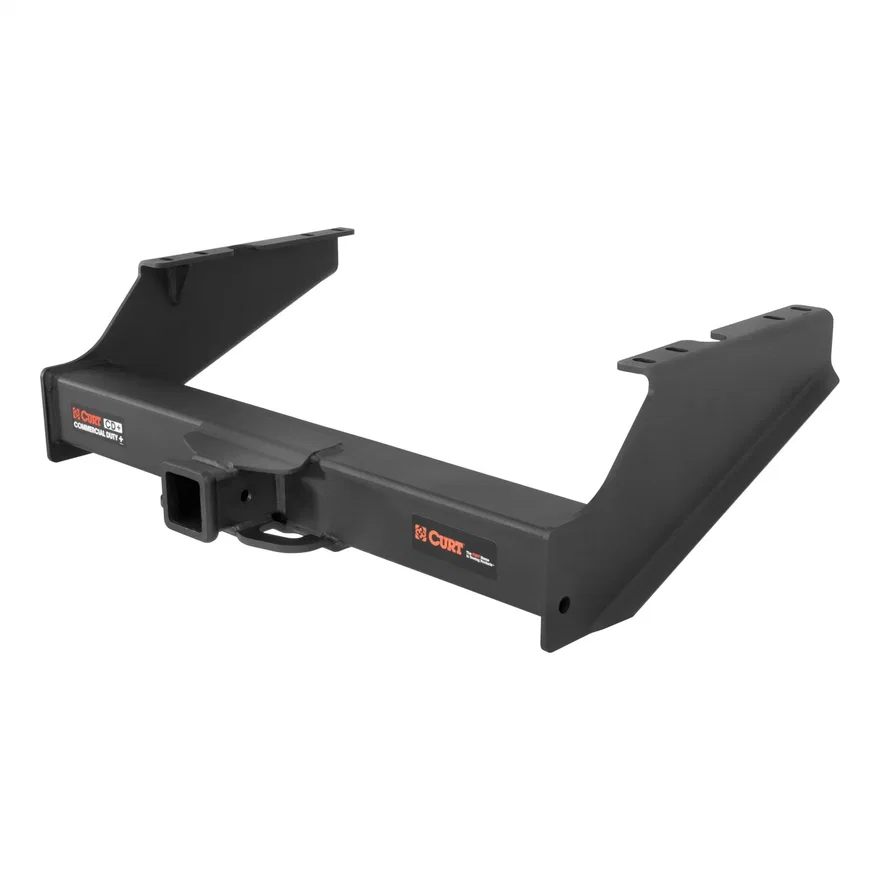

CURT Rear Commercial Duty Class 5 Hitch; 2-1/2in.; Select Ford F250; F350; F450 Super Duty

Part # 15810SKU CUR15810

Set your vehicle above for a fit verdict. 16 vehicles listed below.

Specifications
BrandCURT
Part typeTrailer Hitch
PositionRear
Body ShapeSquare
Drilling RequiredNo
FinishCarbide Black Powder Coat
Gross Trailer Weight20000 lbs.
Install Time30 Minutes
Receiver Tube Size2.500 in.
VisibilityExposed
WC Tongue Weight2700
WD Tongue Weight2700
Weight Carrying Capacity20000
Weight Distribution20000
UPC / GTIN00612314158102
WarrantyLimited Lifetime Warranty (One-Year Finish; One-Year Parts)
  • Made w/A Vehicle-Specific Design For A Custom Fit
  • Tested For Safety In Accordance w/SAE J684
  • Precisely Welded For Superior Strength And Fit
  • Constructed w/A Large Powerful Main Body
  • Protected By A Highly Durable Carbide Powder Coat Finish
  • Co-Cured In A Rust-Resistant Liquid Bonderite Coating
  • Strengthened w/A Cast Welded Seamless Collar
  • Features Wide Safety Chain Openings For Heavy-Duty Hooks
  • Backed By A Limited Lifetime Warranty
  • Made in USA [may include imported hardware]

Description

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Ford F250 Super Duty, F350 Super Duty and F450 Super Duty (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2 in. x 2-1/2 in. receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

Fits these vehicles 16

YearMakeModelSubmodelEngine
1999 - 2002FordF-250 Super Duty-5.4L 330 V8, 6.8L 415 V10, 7.3L 445 V8
2003FordF-250 Super Duty-5.4L 330 V8, 6.0L 363 V8, 6.8L 415 V10, 7.3L 445 V8
2004 - 2007FordF-250 Super Duty-5.4L 330 V8, 6.0L 363 V8, 6.8L 415 V10
2008 - 2010FordF-250 Super Duty-5.4L 330 V8, 6.4L 391 V8, 6.8L 415 V10
2011 - 2016FordF-250 Super Duty-6.2L 379 V8, 6.7L 406 V8
1999 - 2002FordF-350 Super Duty-5.4L 330 V8, 6.8L 415 V10, 7.3L 445 V8
2003FordF-350 Super Duty-5.4L 330 V8, 6.0L 363 V8, 6.8L 415 V10, 7.3L 445 V8
2004 - 2007FordF-350 Super Duty-5.4L 330 V8, 6.0L 363 V8, 6.8L 415 V10
2008 - 2010FordF-350 Super Duty-5.4L 330 V8, 6.4L 391 V8, 6.8L 415 V10
2011 - 2016FordF-350 Super Duty-6.2L 379 V8, 6.7L 406 V8
2008FordF-450 Super Duty-6.4L 391 V8, 6.8L 415 V10
2009FordF-450 Super Duty-6.4L 391 V8
2010FordF-450 Super Duty-6.4L 391 V8, 6.8L 415 V10
2011 - 2012FordF-450 Super Duty-6.7L 406 V8, 6.8L 415 V10
2013 - 2015FordF-450 Super DutyKing Ranch, Lariat, Platinum, XL, XLT6.7L 406 V8, 6.8L 415 V10
2016FordF-450 Super Duty-6.7L 406 V8, 6.8L 415 V10
