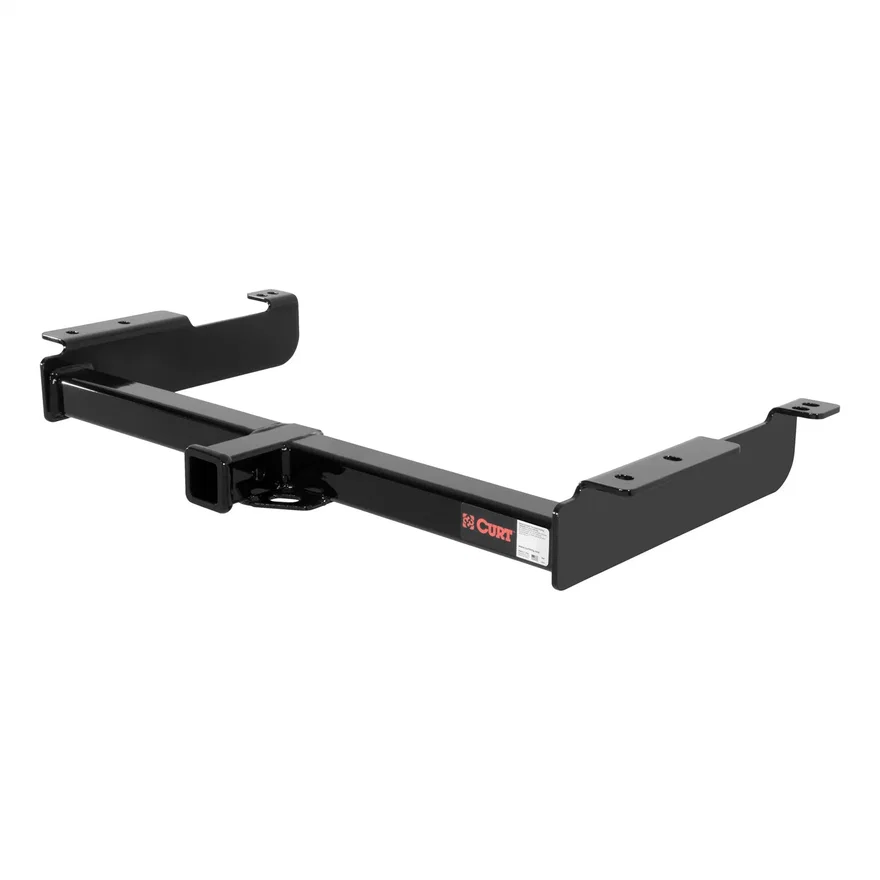

CURT Rear Class 4 Trailer Hitch; 2in. Receiver; Select Chevrolet Express; GMC Savana

Part # 14090SKU CUR14090

Set your vehicle above for a fit verdict. 38 vehicles listed below.

Specifications
BrandCURT
Part typeTrailer Hitch
PositionRear
Body ShapeSquare
Drilling RequiredNo
FinishGloss Black Powder Coat
Gross Trailer Weight10000 lbs.
Install Time20 Minutes
Receiver Tube Size2.000 in.
VisibilityExposed
WC Tongue Weight1000
WD Tongue Weight1200
Weight Carrying Capacity10000
Weight Distribution12000
UPC / GTIN00612314140909
WarrantyLimited Lifetime Warranty (One-Year Finish; One-Year Parts)
  • Made w/A Vehicle-Specific Design For A Custom Fit
  • Tested For Safety In Accordance w/SAE J684
  • Precisely Welded For Superior Strength And Fit
  • Protected By A Durable High-Gloss Black Powder Coat Finish
  • Co-Cured In A Rust-Resistant Liquid Bonderite Coating
  • Strengthened w/A Cast Welded Seamless Collar
  • Equipped w/An Open-Back Receiver For Easy Cleaning
  • Backed By A Limited Lifetime Warranty
  • Made in USA [may include imported hardware]

Description

Whatever the next item is on your to-do list -- whether its arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2 in. receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.

Fits these vehicles 38

YearMakeModelEngine
1996 - 2002ChevroletExpress 15004.3L 262 V6, 5.0L 305 V8, 5.7L 350 V8
2003 - 2014ChevroletExpress 15004.3L 262 V6, 5.3L 325 V8
1996 - 2002ChevroletExpress 25004.3L 262 V6, 5.0L 305 V8, 5.7L 350 V8, 6.5L 395 V8
2003 - 2005ChevroletExpress 25004.3L 262 V6, 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2006ChevroletExpress 25004.3L 262 V6, 4.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2007 - 2015ChevroletExpress 25004.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2016ChevroletExpress 25006.0L 364 V8, 6.6L 403 V8
2017ChevroletExpress 25002.8L 171 I4, 4.8L 294 V8, 6.0L 364 V8
2018 - 2020ChevroletExpress 25002.8L 171 I4, 4.3L 262 V6, 6.0L 364 V8
2021 - 2026ChevroletExpress 2500
1996 - 2000ChevroletExpress 35005.7L 350 V8, 6.5L 395 V8, 7.4L 454 V8
2001 - 2002ChevroletExpress 35005.7L 350 V8, 6.5L 395 V8, 8.1L 496 V8
2003 - 2005ChevroletExpress 35004.8L 294 V8, 6.0L 364 V8
2006 - 2016ChevroletExpress 35004.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2017ChevroletExpress 35002.8L 171 I4, 4.8L 294 V8, 6.0L 364 V8
2018 - 2020ChevroletExpress 35002.8L 171 I4, 4.3L 262 V6, 6.0L 364 V8
2021 - 2022ChevroletExpress 35002.8L 171 I4, 4.3L 262 V6, 6.6L 401 V8
2023 - 2026ChevroletExpress 35004.3L 262 V6, 6.6L 401 V8
2009 - 2014ChevroletExpress 45006.0L 364 V8, 6.6L 403 V8
1996 - 2002GMCSavana 15004.3L 262 V6, 5.0L 305 V8, 5.7L 350 V8
2003 - 2014GMCSavana 15004.3L 262 V6, 5.3L 325 V8
1996 - 2002GMCSavana 25004.3L 262 V6, 5.0L 305 V8, 5.7L 350 V8, 6.5L 395 V8
2003 - 2005GMCSavana 25004.3L 262 V6, 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2006 - 2015GMCSavana 25004.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2016GMCSavana 25006.0L 364 V8, 6.6L 403 V8
2017GMCSavana 25002.8L 171 I4, 4.8L 294 V8, 6.0L 364 V8
2018 - 2020GMCSavana 25002.8L 171 I4, 4.3L 262 V6, 6.0L 364 V8
2021 - 2026GMCSavana 2500
1996 - 2000GMCSavana 35005.7L 350 V8, 6.5L 395 V8, 7.4L 454 V8
2001 - 2002GMCSavana 35005.7L 350 V8, 6.5L 395 V8, 8.1L 496 V8
2003 - 2005GMCSavana 35004.8L 294 V8, 6.0L 364 V8
2006 - 2015GMCSavana 35004.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2016GMCSavana 35006.0L 364 V8, 6.6L 403 V8
2017GMCSavana 35002.8L 171 I4, 4.8L 294 V8, 6.0L 364 V8
2018 - 2020GMCSavana 35002.8L 171 I4, 4.3L 262 V6, 6.0L 364 V8
2021 - 2022GMCSavana 35002.8L 171 I4, 4.3L 262 V6, 6.6L 401 V8
2023 - 2026GMCSavana 35004.3L 262 V6, 6.6L 401 V8
2009 - 2014GMCSavana 45006.0L 364 V8, 6.6L 403 V8
