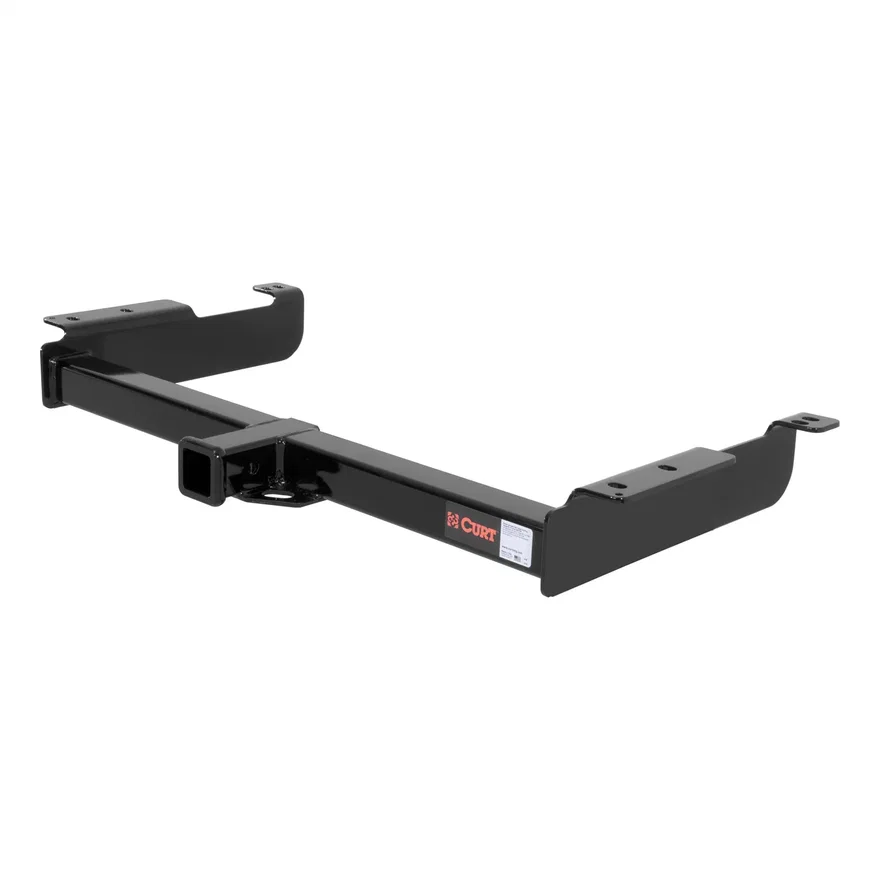

CURT Rear Class 3 Trailer Hitch; 2in. Receiver; Select Chevrolet Express; GMC Savana

Part # 13040SKU CUR13040

Set your vehicle above for a fit verdict. 38 vehicles listed below.

Specifications
BrandCURT
Part typeTrailer Hitch
PositionRear
Body ShapeSquare
Drilling RequiredNo
FinishGloss Black Powder Coat
Gross Trailer Weight6000 lbs.
Install Time10 Minutes
Receiver Tube Size2.000 in.
VisibilityConcealed
WC Tongue Weight600
WD Tongue Weight1000
Weight Carrying Capacity6000
Weight Distribution10000
UPC / GTIN00612314540006
WarrantyLimited Lifetime Warranty (One-Year Finish; One-Year Parts)
  • Made w/A Vehicle-Specific Design For A Custom Fit
  • Tested For Safety In Accordance w/SAE J684
  • Precisely Welded For Superior Strength And Fit
  • Protected By A Durable High-Gloss Black Powder Coat Finish
  • Co-Cured In A Rust-Resistant Liquid Bonderite Coating
  • Strengthened w/A Cast Welded Seamless Collar
  • Equipped w/An Open-Back Receiver For Easy Cleaning
  • Backed By A Limited Lifetime Warranty
  • Made in USA [may include imported hardware]

Description

Whatever your task at hand -- whether its launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2 in. receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

Fits these vehicles 38

YearMakeModelEngine
1996 - 2002ChevroletExpress 15004.3L 262 V6, 5.0L 305 V8, 5.7L 350 V8
2003 - 2014ChevroletExpress 15004.3L 262 V6, 5.3L 325 V8
1996 - 2002ChevroletExpress 25004.3L 262 V6, 5.0L 305 V8, 5.7L 350 V8, 6.5L 395 V8
2003 - 2005ChevroletExpress 25004.3L 262 V6, 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2006ChevroletExpress 25004.3L 262 V6, 4.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2007 - 2015ChevroletExpress 25004.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2016ChevroletExpress 25006.0L 364 V8, 6.6L 403 V8
2017ChevroletExpress 25002.8L 171 I4, 4.8L 294 V8, 6.0L 364 V8
2018 - 2020ChevroletExpress 25002.8L 171 I4, 4.3L 262 V6, 6.0L 364 V8
2021 - 2026ChevroletExpress 2500
1996 - 2000ChevroletExpress 35005.7L 350 V8, 6.5L 395 V8, 7.4L 454 V8
2001 - 2002ChevroletExpress 35005.7L 350 V8, 6.5L 395 V8, 8.1L 496 V8
2003 - 2005ChevroletExpress 35004.8L 294 V8, 6.0L 364 V8
2006 - 2016ChevroletExpress 35004.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2017ChevroletExpress 35002.8L 171 I4, 4.8L 294 V8, 6.0L 364 V8
2018 - 2020ChevroletExpress 35002.8L 171 I4, 4.3L 262 V6, 6.0L 364 V8
2021 - 2022ChevroletExpress 35002.8L 171 I4, 4.3L 262 V6, 6.6L 401 V8
2023 - 2026ChevroletExpress 35004.3L 262 V6, 6.6L 401 V8
2009 - 2014ChevroletExpress 45006.0L 364 V8, 6.6L 403 V8
1996 - 2002GMCSavana 15004.3L 262 V6, 5.0L 305 V8, 5.7L 350 V8
2003 - 2014GMCSavana 15004.3L 262 V6, 5.3L 325 V8
1996 - 2002GMCSavana 25004.3L 262 V6, 5.0L 305 V8, 5.7L 350 V8, 6.5L 395 V8
2003 - 2005GMCSavana 25004.3L 262 V6, 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8
2006 - 2015GMCSavana 25004.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2016GMCSavana 25006.0L 364 V8, 6.6L 403 V8
2017GMCSavana 25002.8L 171 I4, 4.8L 294 V8, 6.0L 364 V8
2018 - 2020GMCSavana 25002.8L 171 I4, 4.3L 262 V6, 6.0L 364 V8
2021 - 2026GMCSavana 2500
1996 - 2000GMCSavana 35005.7L 350 V8, 6.5L 395 V8, 7.4L 454 V8
2001 - 2002GMCSavana 35005.7L 350 V8, 6.5L 395 V8, 8.1L 496 V8
2003 - 2005GMCSavana 35004.8L 294 V8, 6.0L 364 V8
2006 - 2015GMCSavana 35004.8L 294 V8, 6.0L 364 V8, 6.6L 403 V8
2016GMCSavana 35006.0L 364 V8, 6.6L 403 V8
2017GMCSavana 35002.8L 171 I4, 4.8L 294 V8, 6.0L 364 V8
2018 - 2020GMCSavana 35002.8L 171 I4, 4.3L 262 V6, 6.0L 364 V8
2021 - 2022GMCSavana 35002.8L 171 I4, 4.3L 262 V6, 6.6L 401 V8
2023 - 2026GMCSavana 35004.3L 262 V6, 6.6L 401 V8
2009 - 2014GMCSavana 45006.0L 364 V8, 6.6L 403 V8
